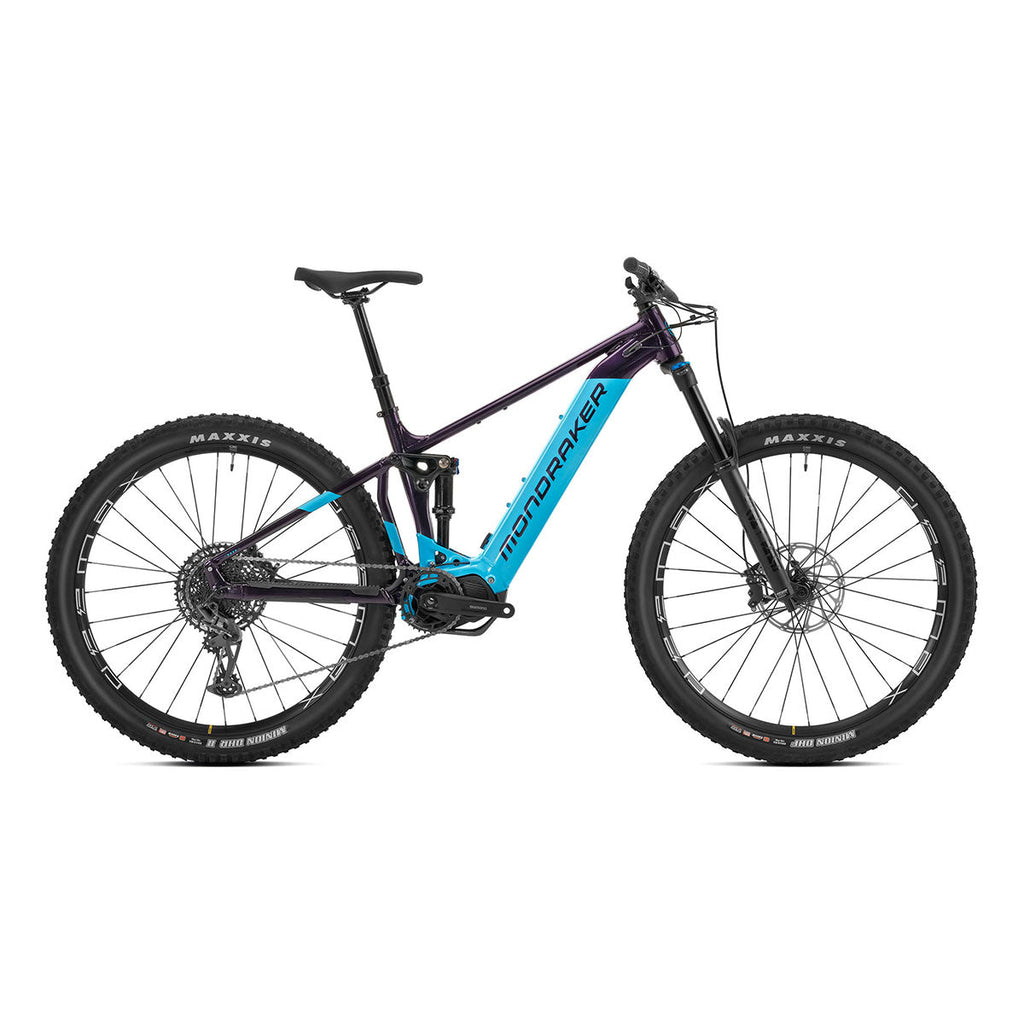

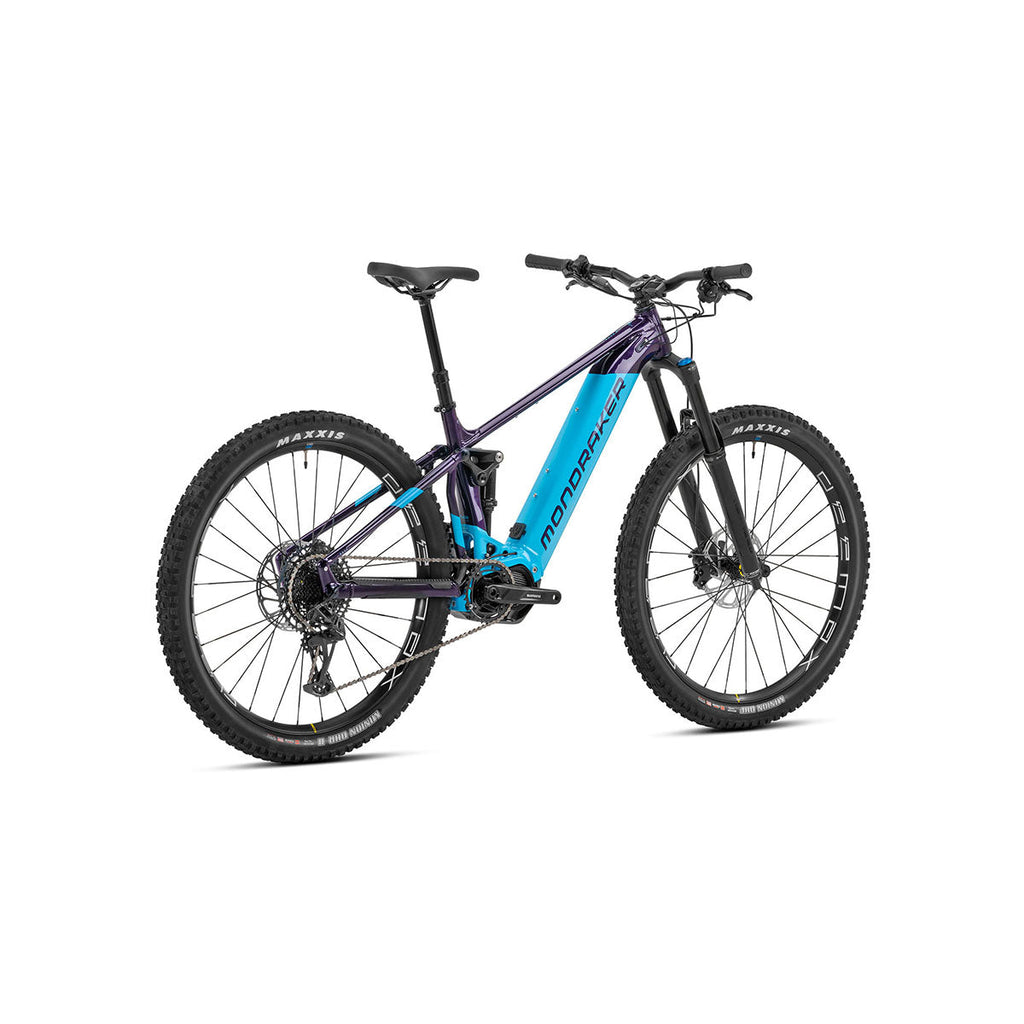

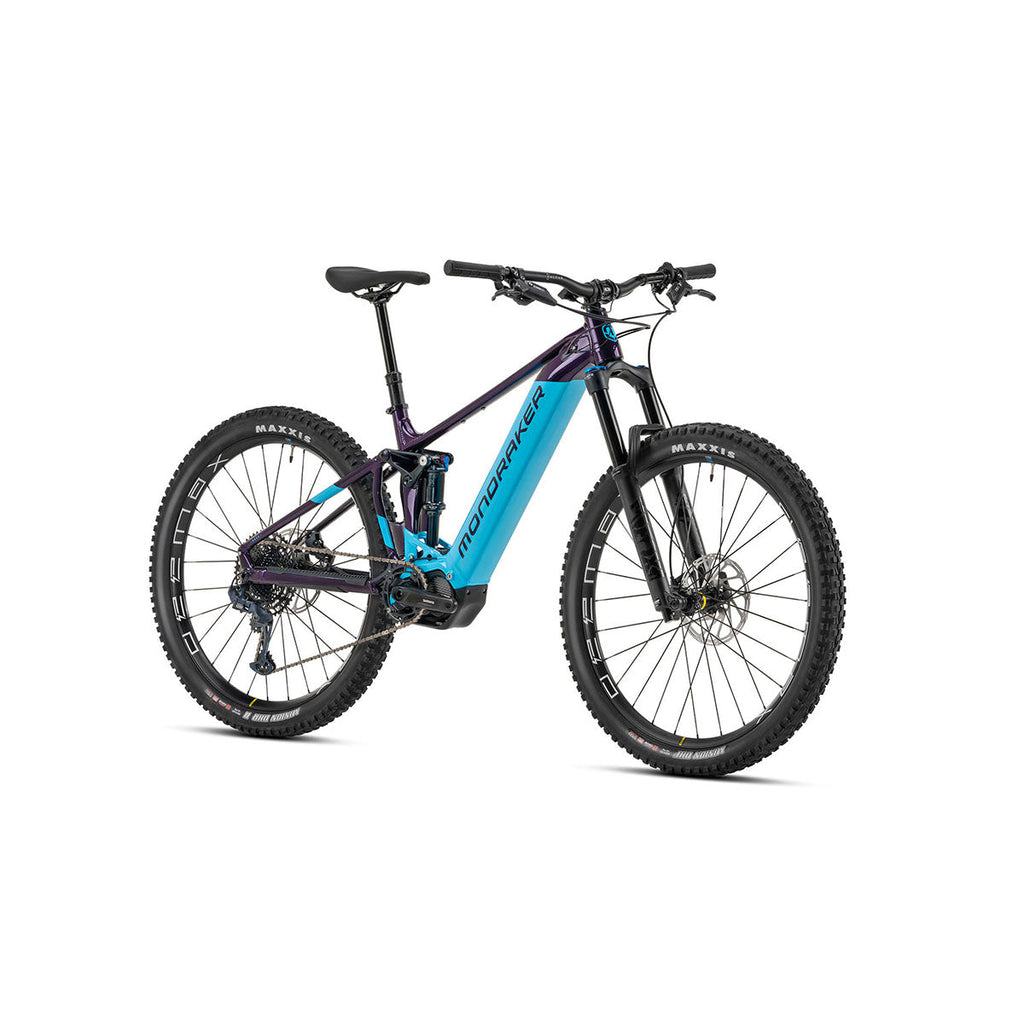

Mondraker - DUSK R SE Bike - Deep Purple-Light Blue (e-MTB ENDURO)

$7,899.00

Sizes: S: 380mm / M: 420mm / L: 450mm / XL: 490mm
Colors: Deep Purple / Light Blue

Get ready to experience the thrill with the Dusk R e-MTB bike designed for enduro, trail and all-mountain riding! The top-end emountain bike with modern geometry is a beauty. eBike optimized zero suspension uses large bearings on a one-piece monoblock link for extreme bump absorption for plusher rides.

Mondraker’s unique zero suspension system helps with stability and control by absorbing the strongest vibrations and keeping your wheels planted on the ground even on the bumpiest of the trails. This superior suspension design offers zero power loss for pedaling stability, zero pedal kickback for minimum chain growth throughout travel, zero brake jack for isolated braking and suspension forces, and zero bumps for absorbing even the slightest bumps for extreme rear wheel stability.

Unleash the power of the Shimano Steps EP800 motor, backed by an integrated 630 Wh battery, both seamlessly concealed inside a durable frame to handle the rigors of mountain bike riding. An optional Simplo 360Wh battery can be attached to the top portion of the downtube for easy extension to 990Wh range. External Battery should be purchased separately.

The compact and lighter engine design and stealth alloy frame help with resistance and mobility for better speed and performance. Stealth Alloy technology uses smartly designed tubes catering to specific functions with the goal of achieving the lowest weight.

High-speed riders will love the safety and confidence offered by Mondraker’s proprietary forward geometry design. Forward geometry also helps with improved handling, overall control, uphill precision, and stability in tough and technical terrains.

HHG Internal Cable Routing helps with a minimalistic, clean design. One-piece upper linkage offers better lateral and torsional stiffness to reduce lateral stress on the shock action. Dusk RR design features oversized axles, boost rear axle, integrated dropout speed sensor, and enduro sealed bearings to withstand the rigors of demanding trails.

Dusk R Ebike sports high-performance rear derailleurs and wide 29er, tubeless-ready tires, for ultimate precision and grip through uneven and rough trails. Extreme riders can conquer rigorous trails in the comfort of consistent and unstoppable braking power from durable, all-terrain compatible, MTB brakes.

Riding stats are just a few clicks away on the Shimano Steps E8000 display, with easy wireless connectivity features.

SPECS

COMPONENTS / TECHNICAL SPECIFICATIONS

FRAME

Dusk 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, integrated internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor. *Optional external battery

SIZES

S: 380mm / M: 420mm / L: 450mm / XL: 490mm

REAR SHOCK

Fox Float DPS LV EVOL Performance, 205x65mm. Settings: Compression 3 positions lever, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings

SHOCK SETTINGS

Medium  compression, Medium rebound, 0.4 volume spacer

FORK

Fox 36 29 Float FIT GRIP EVOL Rhythm, 160mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload

HEADSET

Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45°x45°, bottom 51.9x40x8x45°x45°

STEM

Onoff Sulfur FG 30mm 0°, 6061 forged alloy, 31.8mm barbore

HANDLEBAR

Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 780mm, 9° backsweep, 5° upsweep, 31.8mm barbore

GRIPS

Onoff Diamond, 1lock-on, 135mm

SEATPOST

Onoff Pija dropper internal, diameter 31.6mm, S size: 387x125mm, M size: 425x150mm, L/XL size: 465x170mm

SADDLE

Fizik Terra Aidon X5 145mm

FRONT BRAKE

Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

REAR BRAKE

Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

BRAKE LEVER

Sram G2 R, tool-free reach adjust

RIMS

MDK-HP1 29, 30mm internal width, tubeless ready, 32 spokes

SPOKES

CN round stainless steel

FRONT HUB

Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts

REAR HUB

Formula EHL148 Boost 12x148mm, sealed bearings, IS 6 bolts

FRONT TIRE

Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead

REAR TIRE

Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead

CRANKSET

FSA, 165mm

RINGS

Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD

BOTTOM BRACKET

-

PEDALS

-

CHAIN

Sram SX Eagle, 12s, Powerlock

FRONT DERAILLEUR

-

REAR DERAILLEUR

Sram NX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1

SHIFT LEVERS

Sram Trigger NX Eagle, 12s, X-Actuation 1:1, single click

CASSETTE

Sram PG-1210, 11-50T, 12s

MOTOR

Shimano STEPS EP800

BATTERY

Simplo internal 630Wh

DISPLAY

Shimano STEPS E8000

DERAILLEUR HANGER

Mondraker M068

OTHERS

*Optional external battery: Simplo 360Wh

WEIGHT

-


GEOMETRY

MEASUREMENTS / GEOMETRY (Click on image to expand)

Size

S

M

L

XL

A

Seat Tube Length

380 mm

420 mm

450 mm

490 mm

B

Top Tube Length

605 mm

625 mm

650 mm

670 mm

C

Bottom Bracket Drop

-25 mm

-25 mm

-25 mm

-25 mm

D

Bottom Bracket Height

336 mm

336 mm

336 mm

336 mm

E

Chainstay Length

455 mm

455 mm

455 mm

455 mm

F

Seat Tube Angle, Actual

73.5°

73.5°

73.5°

73.5°

G

Seat Tube Angle, Effective

76°

76°

76°

76°

H

Head Tube Angle

65.5°

65.5°

65.5°

65.5°

I

Fork Offset

44 mm

44 mm

44 mm

44 mm

J

Wheelbase

1225 mm

1245 mm

1265 mm

1285 mm

K

Head Tube Length

110 mm

110 mm

130 mm

130 mm

L

Reach

450 mm

470 mm

490 mm

510 mm

M

Stack

622 mm

622 mm

640 mm

640 mm
